Halogen Lamp
( Model Number : BPi )
Add to Basket Inquire now

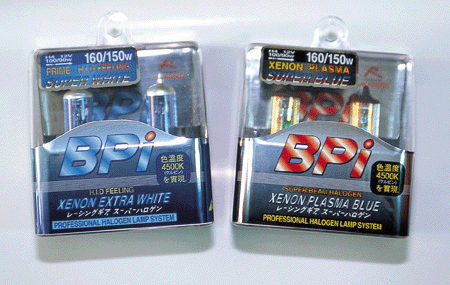

Halogen Lamp

Feature

By coming closer to a daylight white color, BPi Super White is noticeably brighter than standard automotive halogen bulbs in perceived light.
This is the result of new blue coating material that actually increases the color temperature of the bulb to move the light closer to daylight and Xenon gas that is used to cool the filament and allow the halogen process to produce a higher light output.
If you want various colour like as rainbow, we prepared BPi Super Blue.

Specification

H1
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
H1 12V 55W 13.2 MAX 68 1550±15% 400 Clear P14.5s
12v 80W MAX 85 1750±15% 200
12V 100W MAX 110 2000±15% 150
12V 130W MAX 135 3120±15% 150
24V 70W 28.0 MAX 84 1900±15% 400
24V 100W MAX 120 2400±15% 200
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
H1 12V 55W 13.2 MAX 68 1550±15% 300 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser
Super Blue,
Blue Vycor		 P14.5s
24V 70W 28.0 MAX 84 1900±15% 300
12V 80W 13.2 MAX 85 1750±15% 200 Xenon Mega White(B4)
Green, Orange, Blue, Gold, White Laser
Super Blue,
Blue Vycor
12V 100W MAX 110 2000±15% 150
24V 130W MAX 135 3120±15% 150
24V 100W 28.0 MAX 120 2400±15% 200

H3
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
H3 12V 35W 13.2 MAX 40 700±15% 300 Clear PK22s
12v 55W MAX 68 1450±15% 600
12V 80W MAX 100 2500±15% 300
12V 100W MAX 120 2900±15% 300
12V 130W 28.0 MAX 140 3200±15% 300
24V 70W MAX 84 1750±15% 400
24V 100W MAX 120 2600±15% 300
24V 130W MAX 135 3500±15% 300
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
H1 12V 55W 13.2 MAX 68 1550±15% 300 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser
Super Blue,
Blue Vycor		 P14.5s
24V 70W 28.0 MAX 84 1900±15% 300
12V 80W 13.2 MAX 85 1750±15% 200 Xenon Mega White(B4)
Green, Orange, Blue, Gold, White Laser
Super Blue,
Blue Vycor
12V 100W MAX 110 2000±15% 150
24V 130W MAX 135 3120±15% 150
24V 100W 28.0 MAX 120 2400±15% 200

H4
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
High Low High Low High Low
H4 12V 35/35W 13.2 35±5% 35±5% 825±15% 525±15% 150 300 Clear P43t,P45t
12V60/55W MAX75 MAX68 1650±15% 1000±15% 150 300
12V 100/55W MAX110 MAX68 2520±15% 1000±15% 150 300
12V 100/90W MAX110 MAX95 2520±15% 1750±15% 150 300
24V 75/70W 28.0 MAX 85 MAX 80 1900±15% 1200±15% 150 300
24V 100/90W MAX 85 MAX 80 1900±15% 1200±15% 150 300
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
High Low High Low High Low
H4 12V 35/35W 13.2 35±5% 35±5% 825±15% 525±15% 150 300 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser 		P43t, P45t
12V 60/55W MAX75 MAX68 1650±15% 1000±15% 150 300
24V 75/70W 28.0 MAX85 MAX80 1900±15% 1200±15% 150 300
12V 100/55W 13.2 MAX110 MAX68 2520±15% 1000±15% 150 300 Xenon Mega White(B4)
Green, Orange, Gold, Blue, White Laser, lon Orange, Two-tone
12V 100/90W MAX110 MAX95 2520±15% 1750±15% 150 300
24V 100/90W MAX 110 MAX 95 2530±15% 1542±15% 150 300

H7
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
H7 12V 55W 13.2 MAX58 1500±10% 500 Clear PX26d
12V 100W MAX85 2000±10%
24V 70W 28.0 MAX75 1750±10%
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
H7 12V 55W 13.2 MAX58 1500±10% 250 Xenon Mega
White (B2)		 PX26d
24V 70W 28.0 MAX85 2000±10% 500
12V 100W 13.2 MAX85 2000±10% 500 Xenon Mega
White (B4)
12V 55W 13.2 MAX58 1500±10% 250 Green, Orange,
Super Blue, Blue, Gold, White Laser
12V 100W 28.0 MAX75 1750±10% 500
12V 100W 13.2 MAX85 2000±10% 500

800
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
880 12V27W 12.8 27±12% 477±15% 500 Clear PG13
881 PGJ13
884 540±12% PG13
885 12V50W 50±12% 1250±12%
886 PGJ13
889 12V 27W 27±12% 540±12%
890 PG13
892 12V 16W 16±12% 350±12%
893 12V 37.5W 37.5±12% 940±12%
894 PGJ13
896
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
880 12V27W 12.8 27±12% 477±15% 500 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser		 PG13
881 PGJ13
884 540±12% PG13
885 12V50W 50±12% 1250±12%
886 PGJ13
889 12V 27W 27±12% 540±12%
890 PG13
892 12V 16W 16±12% 350±12%
893 12V 37.5W 37.5±12% 940±12%
894 PGJ13
896

9004
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
High Low High Low High Low
9004(HB1) 12V 65/45W 12.8 MAX70 MAX50 1200±15% 700±15% 150 320 Clear P29t
12V 100/55W MAX110 MAX68 1550±15% 1000±15% 100 250
12V 100/80W MAX110 MAX95 1550±15% 1080±15% 100 200
12V 65/55W MAX70 MAX60 1350±15% 1000±15% 150 320 PX29t
24V 100/55W MAX110 MAX60 1550±15% 1000±15% 100 320
24V 100/80W MAX110 MAX85 1550±15% 1000±15% 100 200
ITEM SPEC. Valltage Wattage Luminous Flux Average Life Colour Base
High Low High Low High Low
9004(HB1) 12V 65/45W 12.8 MAX70 MAX50 1200±15% 700±15% 150 320 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser 		P29t
9007(HB5) 12V 65/55W MAX70 MAX60 1350±15% 1000±15% 150 320 PX29t
9004(HB1) 12V 100/55W MAX110 MAX98 1550±15% 1000±15% 100 250 Xenon Mega White(B4)
Green, Orange, Blue, Gold, White Laser		 PX29t
12V 100/80W MAX110 MAX95 1550±15% 1080±15% 100 200
9007(HB5) 12V 100/55W MAX110 MAX60 1550±15% 1000±15% 100 320 PX29t
12V 100/80W MAX110 MAX85 1550±15% 1080±15% 100 200


9005
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
9005(HB3) 12V 65W 12.8 MAX70 1700±12% 300 Clear P20d
12V 100W MAX110 2000±12% 200
9006(HB4) 12V 55W MAX60 1000±15% 500 P22d
12V 80W MAX80 1300±15% 200
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
9005(HB3) 12V 65W 12.8 MAX70 1700±12% 250 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser		 P20d
9006(HB4) 12V 55W MAX60 1000±15% 320 P22d
9005(HB3) 12V 100W MAX110 2000±12% 200 Xenon Mega White(B4)
Green, Orange, Blue, Gold, White Laser		 P20d
9006(HB4) 12V 80W MAX80 1300±15% 200 P22d


9006
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
9005(HB3) 12V 65W 12.8 MAX70 1700±12% 300 Clear P20d
12V 100W MAX110 2000±12% 200
9006(HB4) 12V 55W MAX60 1000±15% 500 P22d
12V 80W MAX80 1300±15% 200
ITEM SPEC. Voltage Wattage Luminous Flux Average Life Colour Base
9005(HB3) 12V 65W 12.8 MAX70 1700±12% 250 Xenon Mega White(B2)
Green, Orange, Blue, Gold, White Laser		 P20d
9006(HB4) 12V 55W MAX60 1000±15% 320 P22d
9005(HB3) 12V 100W MAX110 2000±12% 200 Xenon Mega White(B4)
Green, Orange, Blue, Gold, White Laser		 P20d
9006(HB4) 12V 80W MAX80 1300±15% 200 P22d
